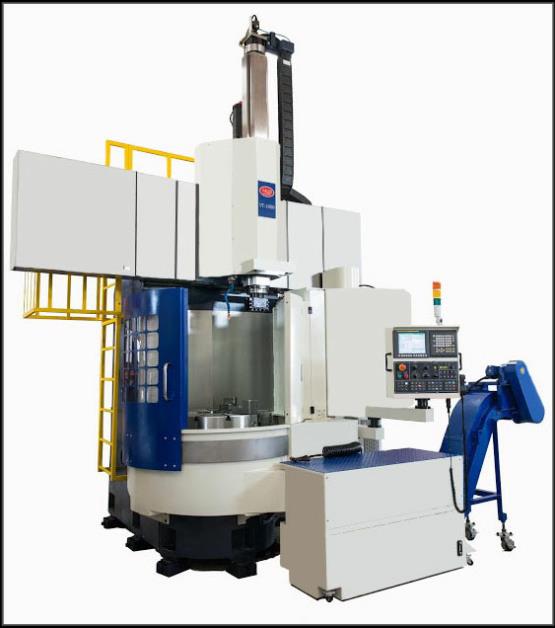

CAPACITYÂ
Max. swing diameter                                                                                                                                                    47.24â (1200 mm)Â
Max. turning diameter                                                                                                                                                  47.24â (1200 mm)Â
Max. turning height                                                                                                                                                      39.37''(1000 mm)Â
Max. distance bottom ram to chuck                                                                                                                             51â (1295 mm) (without tool holder)Â
Table diameter                                                                                                                                                             Ã39.37(Ã1000mm)Â
Max. table load                                                                                                                                                            19,800 lbs (9,000 KGS)Â
SPINDLEÂ
Spindle motor type                                                                                                                                                       FANUC α30i/6000Â
Motor output (30 min.) Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 183.9 ft-lb(249.1 NM)Â
Horsepower                                                                                 50 HPÂ
Gear ranges                                                                                 2Â
Spindle speed range                                                                                                                                                   1-250; 2-500 RPMÂ
Thrust Bearing                                                                                                                                                             NSK 610TMP7102AÂ
X & Z AXISÂ
Max. X-axis travel                                                                                                                                                        45.28â (1,150 mm)Â
Max. Z-axis travel                                                                             39.7â (1,000 mm)Â
X axis rapid                                                                                 393 IPM(10 m/min)Â
Z axis rapid                                                                                 590 IPM(15 m/min)Â
X-axis servo motor                                                                            FANUCα40i; 6 KW (8 HP)Â
 Z-axis servo motor                                                                            FANUCα40i; 6 KW (8 HP)Â
TOOL MAGAZINEÂ
Magazine capacity                                                                           12Â
Tool holder                                                                                 couplingÂ
Driven type                                                                                Servo motor indexingÂ
Maximum tool length                                                                                                                                               19.7â (500 mm)Â
Maximum tool weight                                                                                                                                               88 lbs (40 kgs)Â
 Tool change time pocket to pocket                                                                                                                          1 SecÂ
GENERALÂ
Coolant tank capacity                                                                                                                                              50 gallonsÂ
Power requirement                                                                                                                                                  220/3/60 +/- 10%Â
Machine weight                                                                            33,000 lbs (15,000 KGS)Â
Dimension L x W x H Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 98âx138âx177â (2500x3,500x4500 mm)
